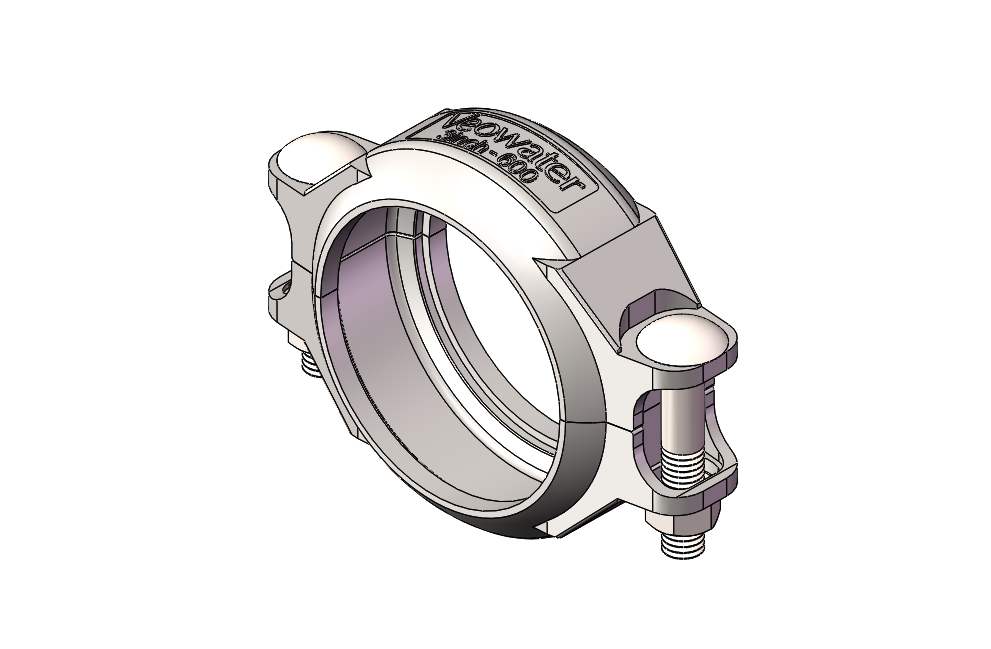

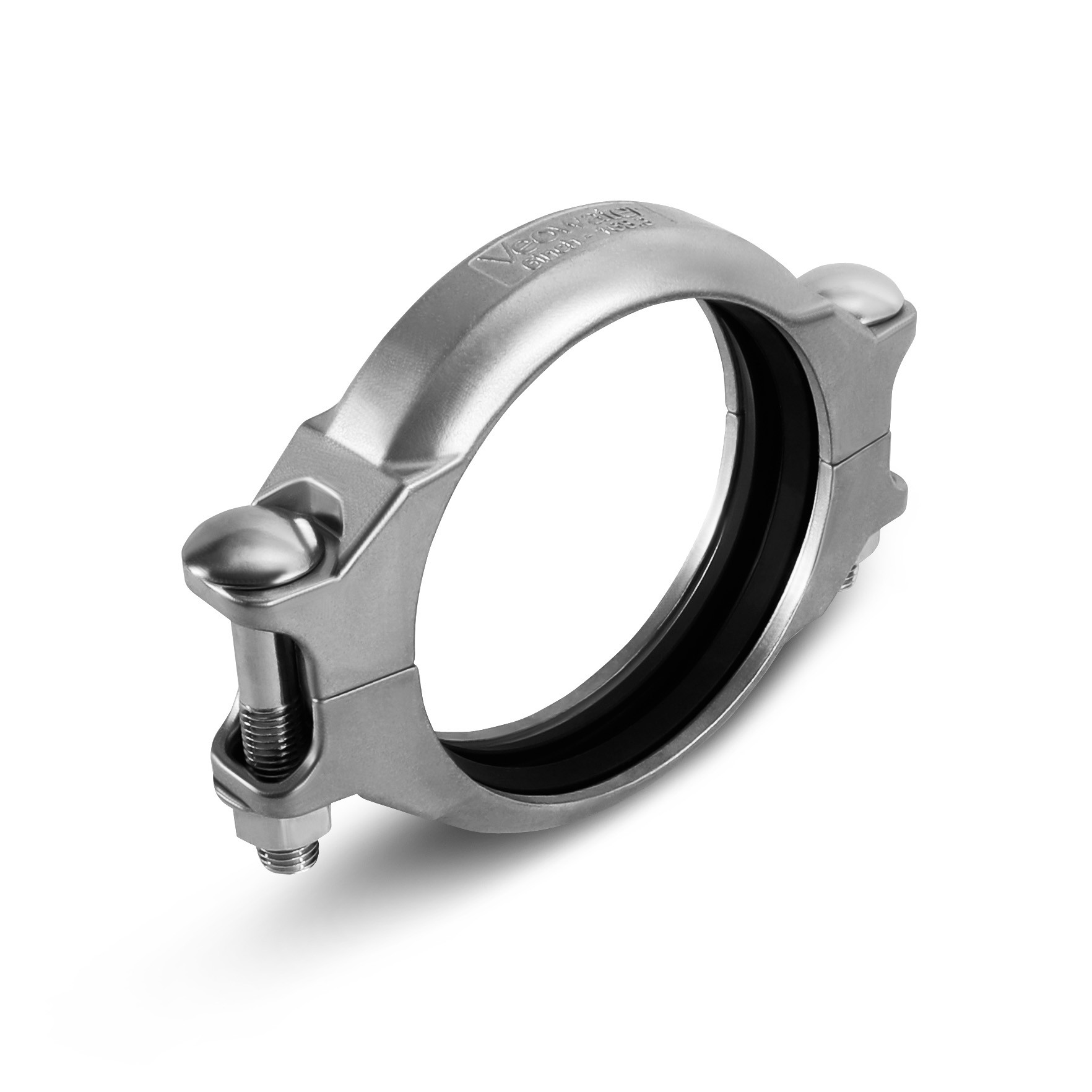

FEATURES
Sizes-Inches/DN:
3/4″to 8″（DN20 to DN200）
working pressure:
600psi(41.4bar) – Sch. 40S, cut groove only
Type 304/316 Stainless steel designed for BWRO systems,The Type M/MS is supplied standard in CF8 (304) and CF8M (316) with 304 or 316 bolts and nuts.
FEATURES
Sizes-Inches/DN
3/4″to 8″（DN20 to DN200）
working pressure:
600psi(41.4bar) – Sch. 40S, cut groove only
Component Description
• Housings:
304 Stainless steel to ASTM A351
316/316L Stainless steel to ASTM A351/A351M
Other alloys are also available; contact Veowater for details.
Gaskets
EPDM rubber, suitable for hot and cold water services. Two shapes of gaskets are available: C-shaped or Flush-fit.
NSF/ANSI 61 approved or equivalent (FDA) for drinking water system components. Not suitable for petroleum service.
Other materials are also available; contact Veowater for details.
Bolts/Nuts/Washers
Adopt international standard type bolts，Round-head,square-neck stainless steel bolts and heavy hex nuts conform to ASME B18.5 and B18.2 respectively.
Bolts and nuts can be selected 304, 316 stainless steel material, in line with ASTM F-593 standard

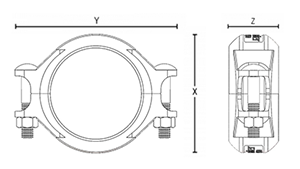

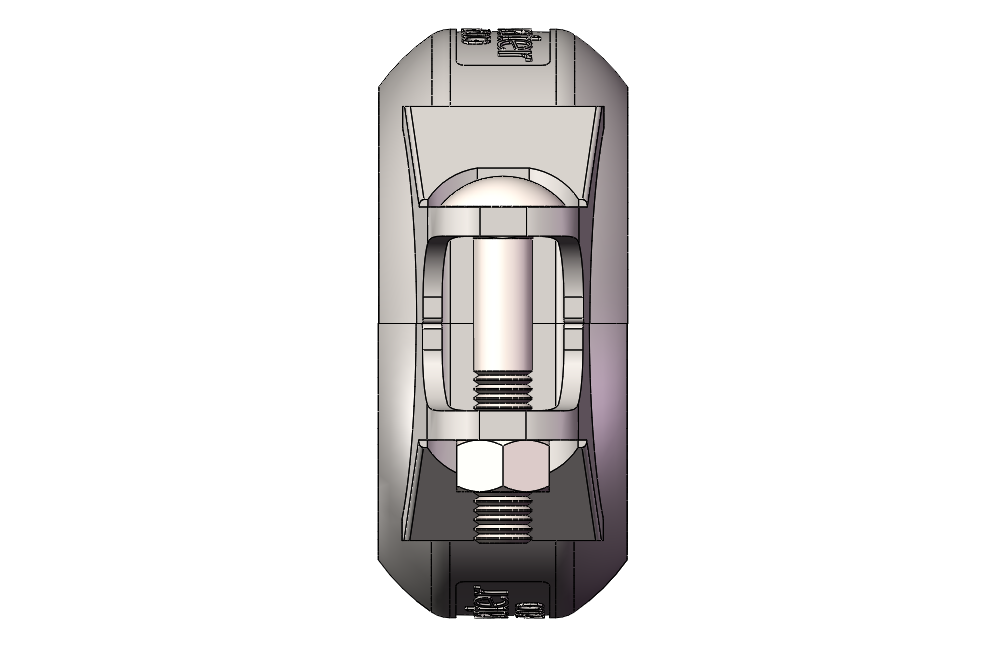

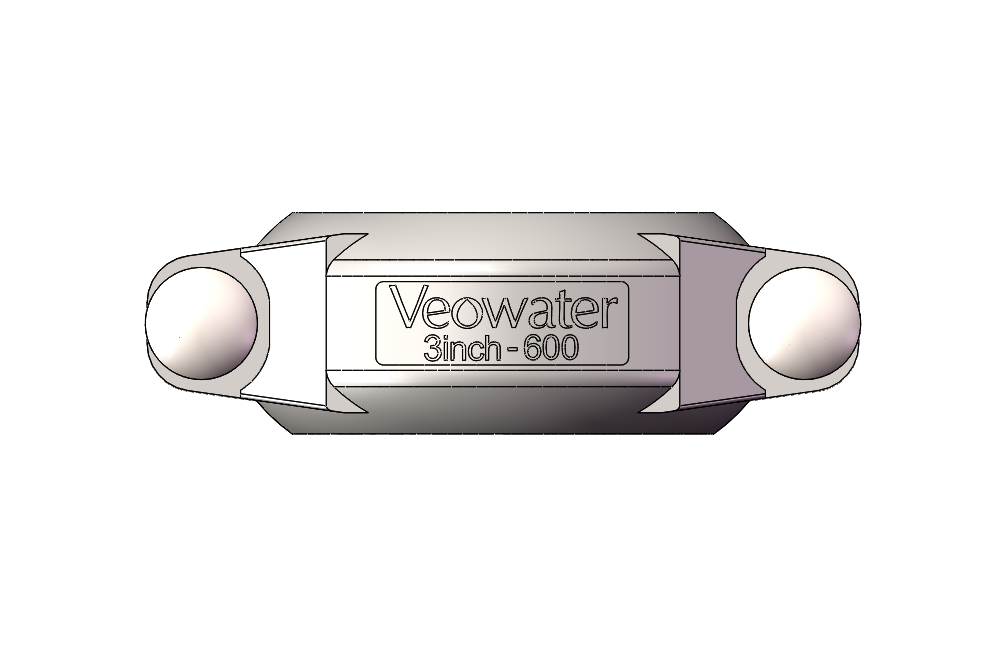

TABLE OF SPECIFICATION
| Nominal | Pipe | Max.Working | Dimensions | Aprx | ||
| Size | OD | Pressures | X | Y | Z | Weight |
| mm | mm | psi | mm | mm | mm | kgs |
| in | in | bar | in | in | in | lbs |
| 20 | 26.7 | 600 | 52 | 81.3 | 42.7 | 0.35 |
| 0.75 | 1.050 | 41.34 | 2.047 | 3.201 | 1.681 | 0.77 |
| 25 | 32 | 600 | 54.5 | 92 | 42 | 0.42 |
| - | 1.260 | 41.34 | 2.047 | 3.622 | 1.654 | 1.1 |
| 25 | 33.4 | 600 | 54.5 | 92 | 42 | 0.42 |
| 1 | 1.315 | 41.34 | 2.146 | 3.622 | 1.654 | 0.924 |
| 32 | 38 | 600 | 61 | 101 | 44 | 0.54 |
| - | 1.496 | 41.34 | 2.401 | 3.976 | 1.732 | 1.19 |
| 32 | 42.2 | 600 | 63 | 103 | 44 | 0.54 |
| 1.25 | 1.660 | 41.34 | 2.480 | 4.055 | 1.732 | 1.19 |
| 40 | 48.3 | 600 | 70.5 | 103.2 | 44 | 0.57 |
| 1.5 | 1.900 | 41.34 | 2.776 | 4.063 | 1.732 | 1.25 |
| 50 | 57 | 600 | 80 | 121 | 44 | 0.67 |
| - | 2.244 | 41.34 | 3.149 | 4.764 | 1.732 | 1.48 |
| 50 | 60.3 | 600 | 82.8 | 118 | 47 | 0.65 |
| 2 | 2.375 | 41.34 | 3.260 | 4.646 | 1.850 | 1.48 |
| 65 | 73 | 600 | 96 | 138 | 47 | 0.98 |
| 2.5 | 2.875 | 41.34 | 3.780 | 5.433 | 1.850 | 3.41 |
| 65 | 76.1 | 600 | 100 | 152 | 44 | 1.05 |
| - | 3.000 | 41.34 | 3.937 | 5.984 | 1.732 | 1.82 |
| 80 | 88.9 | 600 | 111.2 | 151.2 | 47 | 1 |
| 3 | 3.500 | 41.34 | 4.378 | 5.953 | 1.850 | 2.2 |
| 100 | 108 | 600 | 134 | 187 | 48 | 1.4 |
| - | 4.250 | 41.34 | 5.276 | 7.362 | 1.890 | 3.08 |
| 100 | 114.3 | 600 | 145.14 | 193 | 51.31 | 1.55 |
| 4 | 4.5 | 41.34 | 5.714 | 7.598 | 2.020 | 3.41 |
| 125 | 133 | 600 | 160 | 215 | 50 | 2.9 |
| - | 5.250 | 41.34 | 6.299 | 8.465 | 1.969 | 6.38 |
| 125 | 141.3 | 600 | 178 | 218 | 52 | 2.9 |
| 5 | 5.563 | 41.34 | 7.008 | 8.583 | 2.047 | 6.38 |
| 150 | 159 | 600 | 186 | 242 | 56 | 3.1 |
| - | 6.259 | 41.34 | 7.323 | 9.528 | 2.205 | 6.82 |
| 150 | 168.3 | 600 | 200.46 | 261.92 | 51.31 | 3.55 |
| 6 | 6.625 | 41.34 | 7.892 | 10.312 | 2.020 | 7.81 |
| 200 | 219.1 | 450 | 242.8 | 314.6 | 57.2 | 5.2 |
| 8 | 8.625 | 31.01 | 9.559 | 12.386 | 2.252 | 11.44 |
